4-digit display, loop powered indicator with 4-20 mA input.

4 digits Loop-powered Display/ input 4-20 mA/ IP66 protected case (80 x 80 mm)

4 digits Loop-powered Display/ input 4-20 mA/ IP66 protected case (80 x 80 mm)/ 2 displays

ModBUS RTU indicator with OLED 2/7 display/ 2 port Rs485 (Modbus Slave/Modbus Master), up to 20 readings and 10 writings on slaves devices. 10~40 Vdc/19~28 Vac power supply.

Equalization and connection circuit up to 4 load cell in parallel

Equalization and connection circuit up to 4 load cell in parallel + IP66 box including mm diamter cable glands 7 and 2 hole covers

2 Wires transmitter - loop powered for Pt100/Ni100 probe_non isolated

Current loop power supply/ Power supply. 115 / 230 Vac

2 Wires transmitter - loop powered for Pt100/Ni100 probe_non isolated

2 Wires Universal temperature transmitter (loop power supply)

AC Current Trasducer to DC current, adjustable input range by dip switch 5, 10, 15, 20, 25, 30, 35, 40A. Output 4 to 20mA, power supply range 5 to 28Vdc. Includes 1 x A-DIN-T201 for DIN rail mounting

Potentiometric to DC isolator/converter, accepts the signal from the rheostat (2 wires) or the potentiometer (3 wires) and analogue current output (0-20mA and 4-20mA) or voltage (0-5/1- 5/0-10 and 2 to 10Vdc). Power supply: 10 to 40Vdc or 19 to 28Vac

DC Current Trasducer to DC current with input from 0 to 40A (Monopolar) and -5 to 40A (Bipolar). Output from 4 to 20mA, power 6 to 100V. Includes 1 x A-DIN-T201 for DIN rail mounting

RS-232 to RS485/422 Converter. 1500Vac Isolation. Operation: Half or Full Duplex, point-point or multidrop. Connections: RS232: via terminal block or RJ10. RS485: via terminal block. DIN Rail mounting. Power Supply requirement 19~40 Vdc or 19~28 Vac

Acondicionador universal con una entrada análoga (Termopar/ RTD/ potenciómetro/ V/ mV/ mA)/ una salida análoga (V/ mA) y una salida de relevador. Configurable por DIP Switch y software. Alimentación de 85-265 Vca/cd

DC current isolator (self-powered) with a single input from 4 to 20mA and output from 4 to 20mA, galvanic isolation 1.5 kVac 2-way, DIN rail mounting. Power supply: From the 4-20 mA input loop

Frequency (Contact, reed, NPN, PNP, namur, photoelectric, hall effect sensor, 24V or TTL) to analog DC mA or V isolator and converter. Input range from 1 mHz to 9.99 KHz. 3-way galvanic isolation. DIN rail mounting. Power supply 19 ~ 40Vdc/19 ~ 28Vac

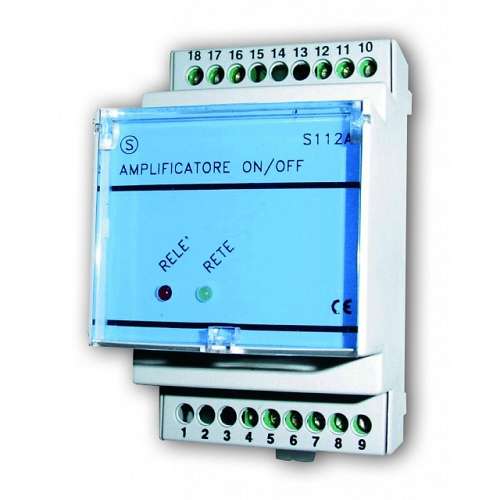

Single-channel digital amplifier for ON/OFF sensors. Features a pulse divider (from 1 to 256) configurable via DIP switches and pulse output length (from 100 to 500 ms) by rotatng a trimmer in the front panel. 1 input compatible with optoisolated contact, Reed, 2/3-wire NPN, 3-wire PNP, NAMUR, 24 Vdc pulses, photoelectric sensor, or Hall effect sensor (400 Hz max frequency). 1 SPDT relay output (5 A at 250 Vac or 1 A at 30 Vdc, resistive load). 3-way galvanic isolation at 1500 Vac. DIN rail mounting. Power input: 19 to 40 Vdc or 19 to 28 Vac (power supply not included)

Digital contact amplifier/ 2 channels

DC current / voltage Adder / subtracter, allows the addition or subtraction of 2 analog signals and obtain the equivalent output through an analog signal (0-20mA and 4-20mA or 0-1 / 0-5 / 0-10 and 2 to 10Vdc). Feeding: 10 to 40Vdc or 19 to 28Vac
