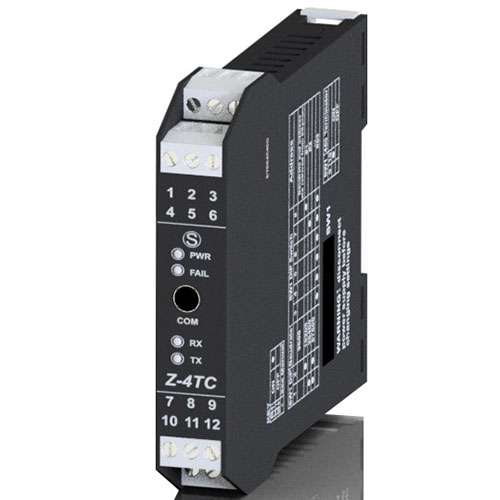

Module with 4 independent input channels for thermocouple type J, K, R, S, T, B, E, N. RS-485 port. Modbus RTU Communication (Optional accesory Z-PC-DINAL2-17.5), power supply 10 ~ 40 Vdc or 19 ~ 28 Vac

GSM/UMTS triband Directive Antenna, cable 5 m, SMA

Rogowski Coil L=25cm Øint.8cm,100mV/1KA-50Hz,cable L=3mt.

3 ½ digit indicator, V / I input, 2 relay alarms, 96x96 mm, power supply 115 / 230 Vac

Rogowski Coil L=40cm Øint.12cm,100mV/1KA-50Hz,cable L=3mt.

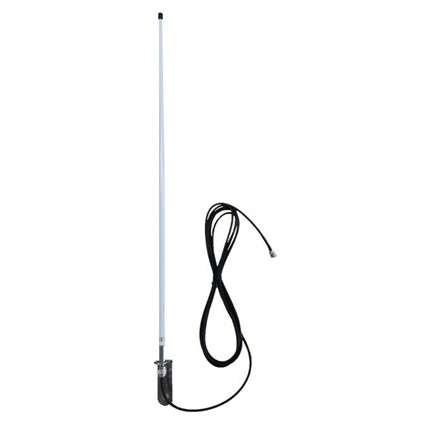

169MHz vert.Dip. lambda/2 ant, BNC M, 5mt,low loss cable

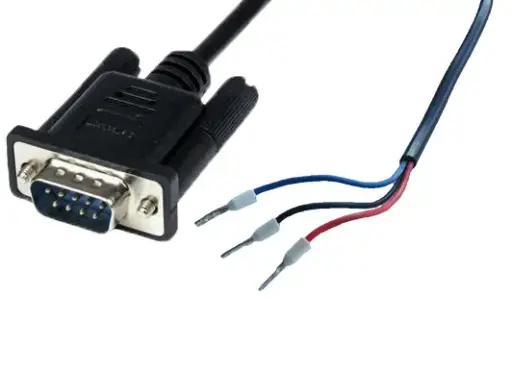

RS232 connection cable (DB9F-CFV10)

S20N1 / S21N1 remote board, 115 / 230 Vac

LCD 96x96 BASIC Power Meter, TA1/5A-RS485 Modbus,1MB mem. log.,1 DI 2 DO

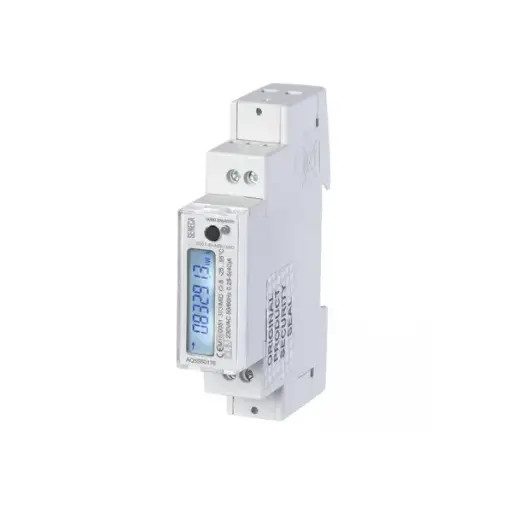

40A single phase energy counter 2 wires 1 DIN, M-BUS, MID certified

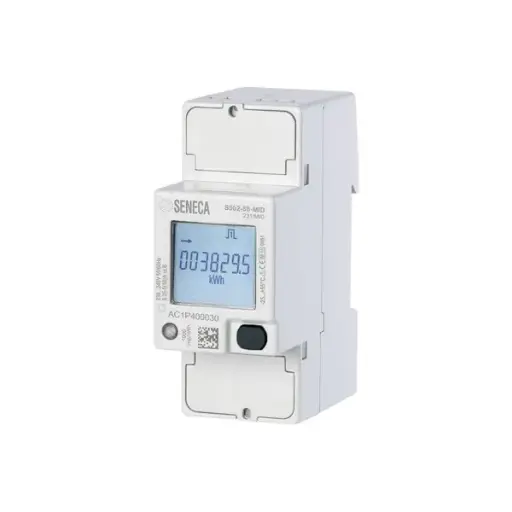

80A single phase energy counter 2 wires 2 DIN, M-BUS

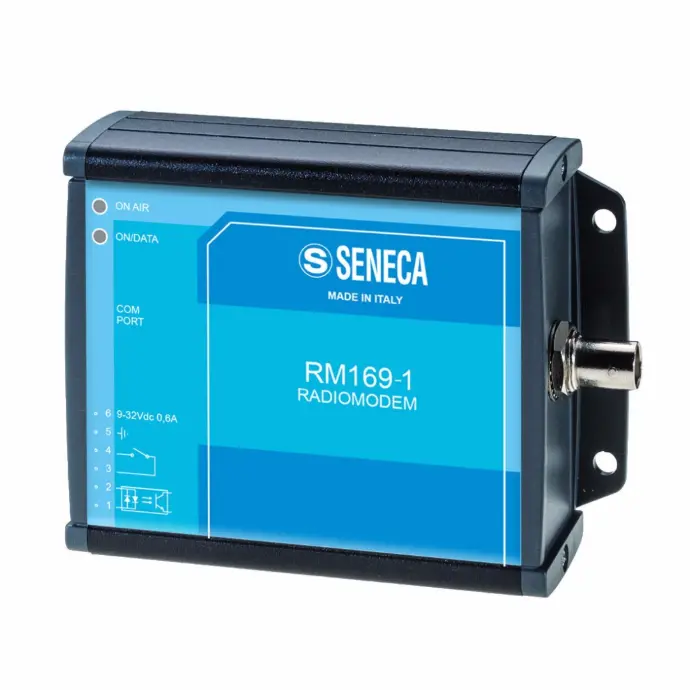

169MHZ Radiomodem, 1DI,1DO,1RS485, vertical stilo antenna, RED directive

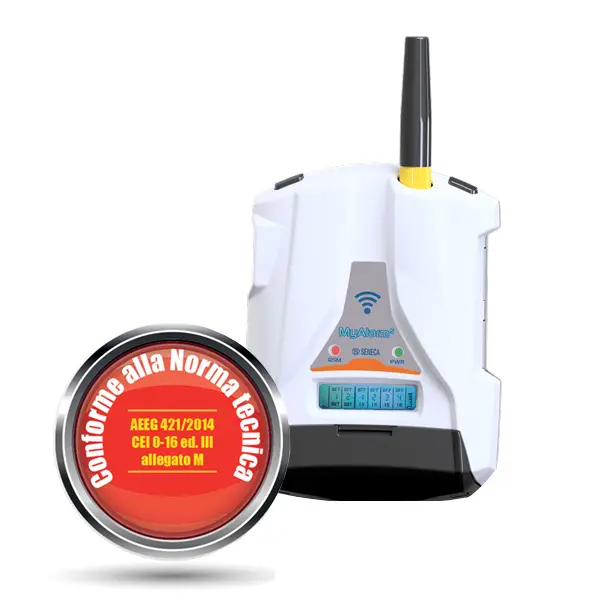

GSM unit for SPI compliant to CEI 0-16 annex M, A-GSM, 24 Vdc - 12 Vdc

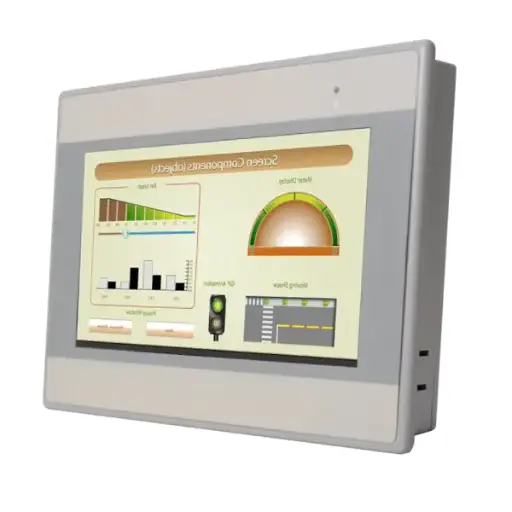

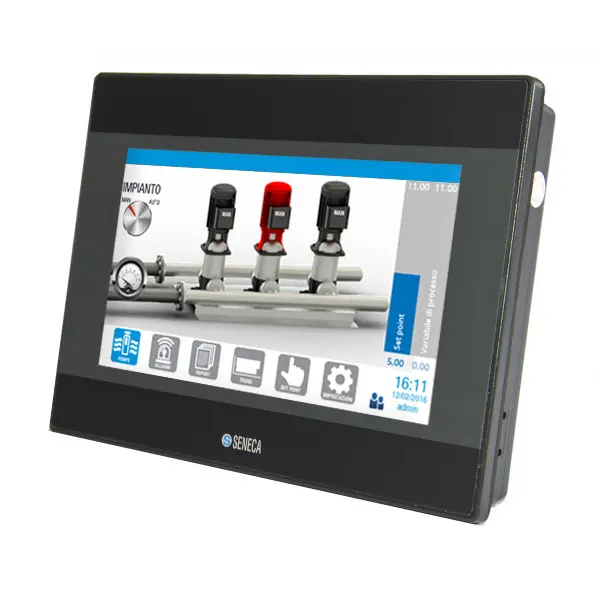

7" touch screen operator panel, Ethernet

Rogowski Coil L=25cm Øint.8cm,100mV/1KA-50Hz,cable L=5mt.

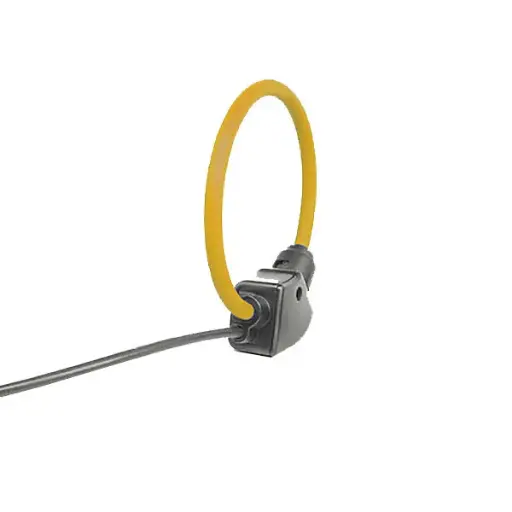

Rogowski Coil L=25cm Øint.8cm,100mV/1KA-50Hz,cable L=10mt.

Rogowski Coil L=40cm Øint.11cm,100mV/1KA-50Hz,cable L=10mt.

Rogowski Coil L=60cm Øint.19cm,100mV/1KA-50Hz,cable L=5mt.

TEST-4 transport and protection case

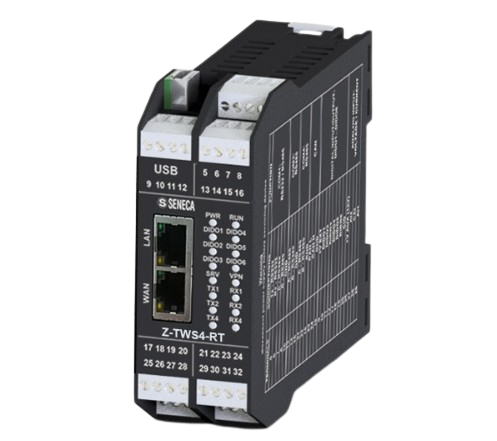

IIoT Edge Controller SoftPLC IEC 61131-3 with Energy Protocols support (IEC 60870-101/-104, IEC 61850). Features 2 Fast Ethernet ports , 3 serial ports (RS232/RS485) , and 1 USB host port. Provides 6 configurable DI/DO and 2 AI (mA, V). Supported protocols include ModBUS TCP/RTU, FTP/SFTP, HTTP/HTTPS, OpenVPN, SSL, MQTT, OPC UA. Cybersecurity certified: IEC 62443, OWASP, NIST 800-115. Memory: 4 GB Flash or more, 512 MB RAM, Micro SD up to 32 GB.
