Electronic Instrumentation

WEIGHT INDICATOR MODEL W200 MULTIPROGRAM

Weight transmitter with a backlit 60 × 32 mm LCD graphic display (128 × 64 pixels), four calibration keys, and a TEST key for direct access to diagnostic functions. Dimensions: 148 × 92 × 60 mm. Features 8 independent load cell reading channels, digital equalization, automatic diagnostics, and an inclinometer function. Designed for rear-panel Omega/DIN rail or enclosure mounting. Includes a 16-bit analog output (0/4–20 mA; 0–5/10 V), RS485 Modbus RTU port, 3 digital inputs, and 5 relay outputs. OIML R 76:2006 approved, Class III, 10,000 divisions. Sensitivity: 0.2 μV/VSI. Equipped with an 8-channel, 24-bit A/D converter (16,000,000 points), operating at 4.8 kHz, with up to 999,999 display divisions.

RS485 weight transmitter with 16-bit analog outputs: 0/4–20 mA, 0–5/10 V, ±5/10 V, and an RS485 Modbus port. It features a backlit LCD display measuring 38 × 16 mm, with two lines of eight digits each (5 mm character height). It can be mounted on an Omega/DIN rail at the rear of a panel or installed in an enclosure.

WEIGHT INDICATOR MODEL WDOS UNLOAD 115Vac + ANALOG OUT-PUT

WEIGHT INDICATOR MODEL W200 MULTIPROGRAM + ANALOG OUT-PUT

WEIGHT INDICATOR MODEL W200 MULTIPROGRAM 115Vac

WEIGHT INDICATOR MODEL W200 UNLOAD + ANALOG OUT-PUT 230Vac

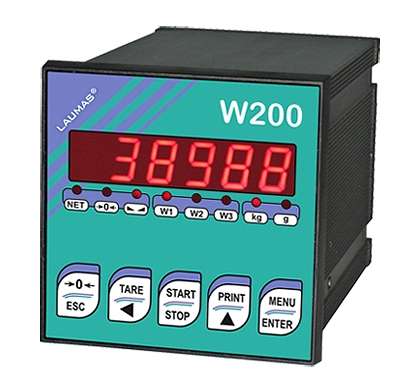

WEIGHT INDICATOR MODEL W200 MULTIPROGRAM 230Vac

WEIGHT TRANSMITTER MODEL TLL WITH SYNCHRONOUS TRANSMISSION RS485 + RS232

WEIGHT INDICATOR MODEL W200 UNLOAD + ANALOG OUT-PUT

WEIGHT TRANSMITTER MODEL TLB2ETHE RS485 + ETHERCAT

WEIGHT INDICATOR MODEL W200 UNLOAD 115Vac

WEIGHT INDICATOR MODEL W200 UNLOAD + ANALOG OUT-PUT 115Vac

WEIGHT TRANSMITTER MODEL TLL WITH SYNCHRONOUS TRANSMISSION RS485 + RS232 + ANALOG OUT-PUT

WEIGHT TRANSMITTER MODEL TLM8 WITH 8 INDIVIDUAL CHANNELS + RS485 + ANALOG OUTPUT + CC-LINK

WEIGHT TRANSMITTER MODEL TLS RS485 + ANALOG OUT-PUT 4-20mA

WEIGHT TRANSMITTER MODEL TLB2ETHE RS485 + POWERLINK

WEIGHT INDICATOR MODEL WTABG BASE GRAPHIC DISPLAY WITH IP40 D-SUB CONNECTORS

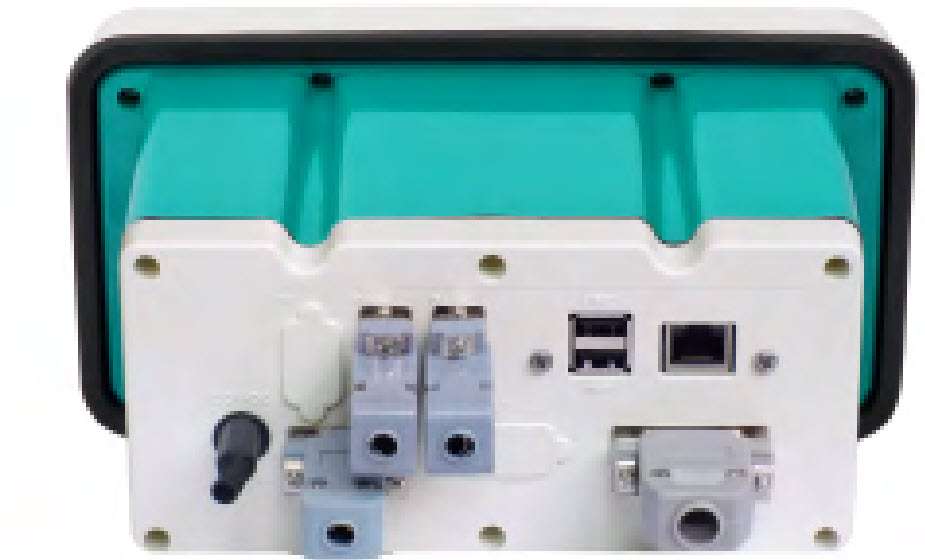

WEIGHT INDICATOR MODEL WDESKG 14 PRODUCTS GRAPHIC DISPLAY WITH IP40 D-SUB CONNECTORS

WEIGHT INDICATOR MODEL WTABR BASE RED LED DISPLAY WITH IP40 D-SUB CONNECTORS
