Flexible current transducer based on the Rogowski coil principle. It features a coil length of 35 cm and an internal diameter of 11 cm. It provides an output signal of 100 mV per 1 kA at 50 Hz. Includes an integrated connection cable with a length of 3 meters

Flexible current transducer based on the Rogowski coil principle. It features a coil length of 90 cm and an internal diameter of 28 cm. It provides an output signal of 100 mV per 1 kA at 50 Hz. Includes an integrated connection cable with a length of 3 meters

4-digit universal input indicator/signal generator, 80-265 Vac

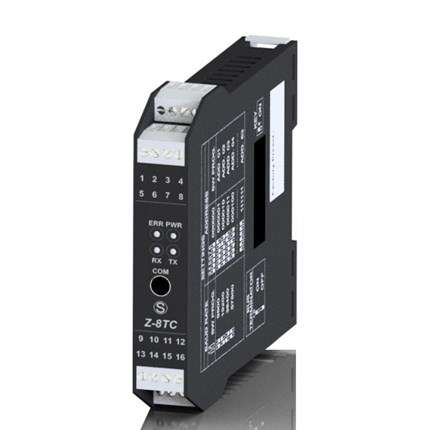

8-CH thermocouple input module / RS485 ModBUS RTU, Micro USB port

ModBUS RTU / TCP-IP to M-BUS gateway / protocol converter. Support up to 25 Meter-BUS slaves. Ports: 1x Ethernet, 2x Serial , 1x micro USB and 1x M-BUS. DIN Rail mounting (otional Z-PC-DINAL1-35). Power supply 11~40Vdc or 19~28 Vac

16-CH digital input / 8-CH digital output ModBUS TCP-IP / ModBUS RTU module

Flexible current transducer based on the Rogowski coil principle. It features a coil length of 180 cm and an internal diameter of 57 cm. It provides an output signal of 100 mV per 1 kA at 50 Hz. Includes an integrated connection cable with a length of 3 meters

LCD 96x96 Energy PLUS Power Meter Kit, RS485 Modbus,8MB log.,1 DI 2 DO,Arm.+3 Rogowski RC150 L= 30cm Øint.9,5cm

LCD 96x96 Energy PLUS Power Meter Kit, RS485 Modbus,8MB log.,1 DI 2 DO, harmonics, 3 Rogowski RC150 L= 45cm Øint.14cm

Strain gauge/load cell signal converter. Input for 4 or 6-wire. Input 1~64mV/V settable by DIP-switch or software, analog output configurable 0~20, 4~20 mA, 0~5 or 0~10 Vdc. With advanced functions and flexible measurement management mode.

LCD 96x96 Energy PLUS Power Meter Kit, RS485 Modbus,8MB log.,1 DI 2 DO,Arm.+3 Rogowski RC150 L= 70cm Øint.22cm

8-CH thermocouple input module / RS485 ModBUS RTU, Micro USB port, interchangeable clamps

AC single phase advanced network analyzer with micro USB port

AC / DC non-contact TRMS current transducer (± 50 A), Hall Effect with alarm (PNP active)/AO output 0..10 V and ModBUS interface.

Profinet IO module with 16-channel digital input and 8-channel relay output (SPST). Power supply 10~40Vdc or 19~28Vac.

Rogowski Coil L=60cm Øint.19cm,100mV/1KA-50Hz,cable L=10mt.

AC/DC contactless TRMS direct and alternate current transducer with input for +/- 600A AC/DC, configurable by DIP switch or microUSB, analog output from 0 to 10 Vdc, PNP alarm output and Modbus RTU interface, diameter of 35 mm, DIN rail mounting, power supply 11.5 to 28 Vdc

4G LTE WW datalogger with GPS, integrated and expandable I/O, logic functions, remote control and alarm management. RS232/485 serial communication, Ethernet, supports FTP, SMTP, HTTP, Modbus RTU/TCP-IP, SMS protocols. IP20. Micro USB interface. Expandable memory to 32 GB.

IIoT Edge Gateway with integrated I/O, data logger, remote control and VPN functions. 2 ethernet ports, 10 I/O channels, WiFi module. 4G LTE WW.

ModBUS Gateway/Radio Hub LoRa for wireless sensors. ModBUS connection up to 8 TCP-IP clients and 128 Modbus RTU slave nodes, 1 Ethernet port, RS485/RS232 Modbus RTU slave port, up to 32 sensors to couple, external radio antenna, IP20. Withstands temperaturres from -20°C to 70°C.
